Product Summary

The FF1000R17IE4 is a PrimePACK module and NTC. The applications of the FF1000R17IE4 include 3-level-applications, auxiliary inverters, high power converters, motor drives, traction drives, wind turbines.

Parametrics

FF1000R17IE4 absolute maximum ratings: (1)collector emitter voltage: 1700V; (2)DC-collector current: 1000A; (3)repetitive peak collector current: 2000A; (4)total power dissipation: 62500W; (5)gate-emitter peak voltage: ±20V.

Features

FF1000R17IE4 features: (1)Extended operation temperature TVJop; (2)High DC stability; (3)High current density; (4)Low switching losses; (5)Tvjop=150℃; (6)Enlarged diode for regenerative operation; (7)Low VCEsat.

Diagrams

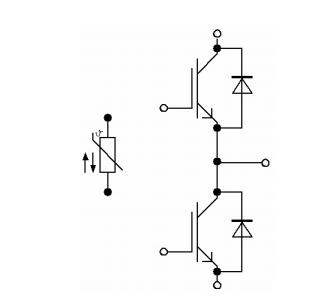

FF1000R17IE4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF1000R17IE4
FF1000R17IE4

Infineon Technologies

IGBT Modules N-CH 1.7KV 1.39KA

Data Sheet

0-2: $603.46
2-10: $543.09
FF1000R17IE4D_B2
FF1000R17IE4D_B2

Infineon Technologies

IGBT Modules IGBT 1700V 1000A

Data Sheet

0-2: $699.00
2-10: $630.60
