Product Summary

The F4-100R06KL4 is an IGBT module.

Parametrics

F4-100R06KL4 absolute maximum ratings: (1)collector emitter voltage, VCES: 1200V; (2)DC collector current, IC: 130A; (3)repetitive peak collector current, ICRM: 200A; (4)total power dissipation, Ptot: 660W; (5)gate emitter peak voltage, VGES: ±20V.

Features

F4-100R06KL4 features: (1)rated resistance, R25: 500kΩ; (2)deviation of R100: -5 to 5%; (3)power dissipation, P25: 20mW.

Diagrams

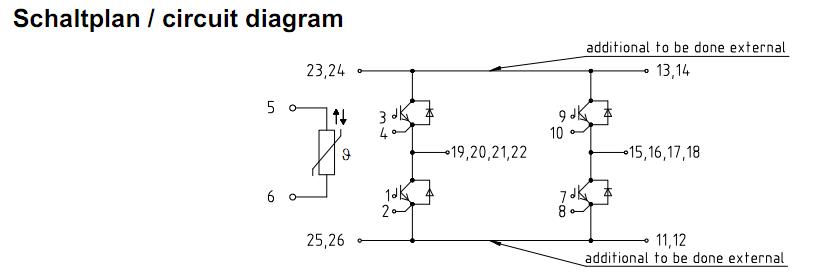

F4-100R06KL4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
F4-100R06KL4
F4-100R06KL4
Infineon Technologies
IGBT Modules 1200V 100A LOW LOSS FOUR PACK
Data Sheet
0-6: $65.53
6-10: $50.96
