Product Summary

The DDB6U144N16R is a rectifier bridge EUPEC module.

Parametrics

DDB6U144N16R absolute maximum ratings: (1)Tvj = - 40℃ Tvj max VRRM: 1000V; (2)repetitive peak reverse voltage: 1600 V; (3)non-repetitive peak reverse voltage Tvj = + 25℃ Tvj max VRSM: 1300V; (4)non-repetitive peak reverse voltage: 1700 V; (5)surge forward current Tvj = 25 ℃, tp = 10 ms: 650A; (6)Tvj = Tvj max, tp = 10 ms IFSM: 550 A; (7)I2t-value Tvj = 25 ℃, tp = 10 ms: 2100A2s; (8)Tvj = Tvj max, tp = 10 ms I2t: 1500 A2s.

Features

DDB6U144N16R features: (1) tolerance ±15% M1 mounting torque: 4 Nm; (2)weight G typ.: 185 g; (3)distance: 12.5 mm; (4)f = 50Hz 50 m/s2.

Diagrams

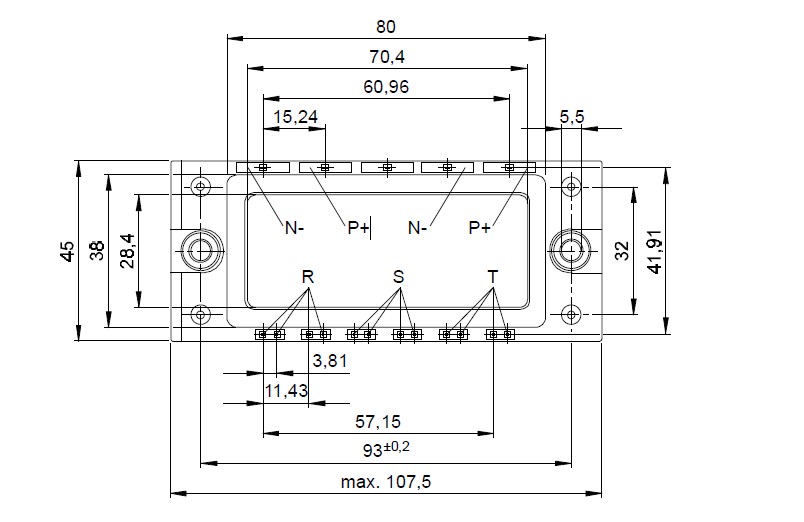

DDB6U144N16R block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DDB6U144N16R
DDB6U144N16R

Infineon Technologies

Discrete Semiconductor Modules 1600V 145A UN-CNTL

Data Sheet

0-15: $46.72
