Product Summary
The CM900HC-90H is a high power switching use insulated type module. The applications of the CM900HC-90H include Traction drives, High Reliability Converters / Inverters, DC choppers.
Parametrics
CM900HC-90H absolute maximum ratings: (1)Collector-emitter voltage, VCES: 4500V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector current, IC: 900A; ICM: 1800A; (4)Emitter current (Note 2), IE: 900A; IEM: 1800A; (5)Maximum power dissipation (Note 3), Pc: 11900W; (6)Isolation voltage, Viso: 6000V; (7)Junction temperature, Tj: -40 to 150℃; (8)Operating temperature, Top: -40 to 125℃; (9)Storage temperature, Tstg: -40 to 125℃.
Features
CM900HC-90H features: (1)IC: 900 A; (2)VCES: 4500 V; (3)Insulated Type; (4)1-element in a Pack; (5)AISiC Baseplate.

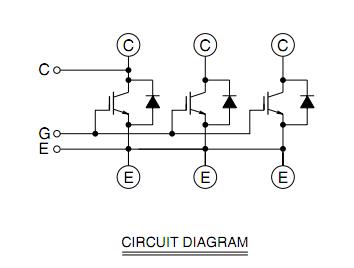

Diagrams
