Product Summary

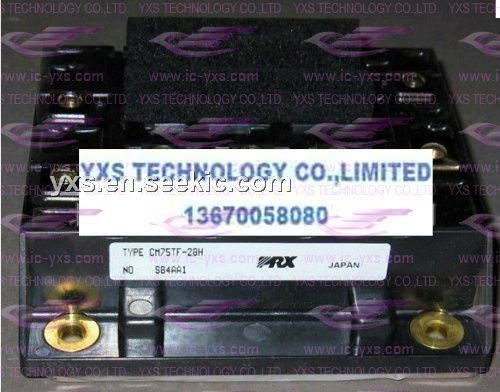

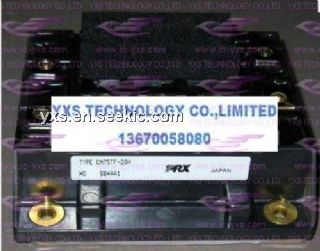

The CM75TF-28H is a high power switching use insulated type module. Powerex IGBT Module is designed for use in switching applications. Each module consists of six IGBT Transistors in a three phase bridge configuration, with each transistor having a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM75TF-28H include AC Motor Control, UPS, Motion/Servo Control, welding Powered Supplies.
Parametrics
CM75TF-28H absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1400 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (Tc = 25℃) IC: 75 Amperes; (6)Peak Collector Current (Tj ≤ 150℃), ICM: 150A; (7)Emitter Current (Tc = 25℃), IE: 75A; (8)Peak Emitter Current, IEM: 150A; (9)Maximum Collector Dissipation (Tj < 150℃) (Tc = 25℃), Pc: 600W; (10)Mounting Torque, M5 Mounting: 1.47 to 1.96N·m; (11)Weight: 830 Grams; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500V.
Features
CM75TF-28H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

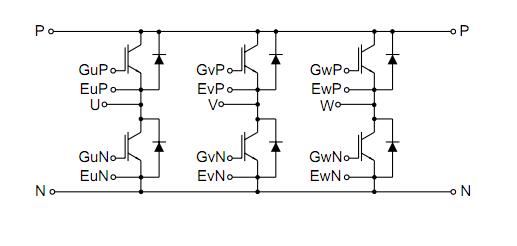

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM75TF-28H |
|
IGBT MOD 6PAC 1400V 75A H SER |
Data Sheet |
