CM75DY-28H

CM75DY-28H, high power switching use insulated type module, 1400V, 75A, 600W, MITSUBISHI

Rated 5 Rating 5 | reviews | Write a review

Price:: US $40.00~57.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 20 :	57.00 / Piece
21 ~ 30 :	50.00 / Piece
31 ~ 40 :	40.00 / Piece

PartNumber:: CM75DY-28H

Brand:: MITSUBISHI - MITSUBISHI | D/C: 09+

Availability:: Supply Ability: 1000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-22

From Other Seller

Part Number:CM75DY-28H
US $40.00 - 57.00
Quantity:

piece

Product Summary

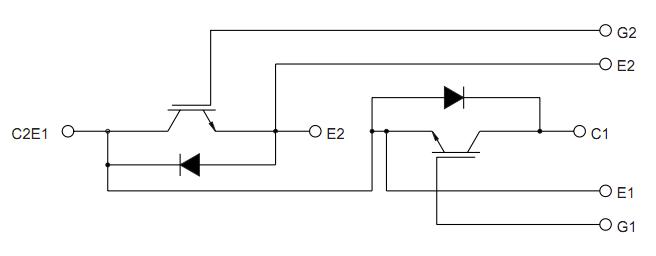

The CM75DY-28H is a high power switching use insulated type module. The CM75DY-28H is designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM75DY-28H include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.

Parametrics

CM75DY-28H absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1400 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (Tc = 25℃), IC: 75 Amperes; (6)Peak Collector Current (Tj ≤ 150℃), ICM: 150A; (7)Emitter Current (Tc = 25℃), IE: 75A; (8)Peak Emitter Current, IEM: 150A; (9)Maximum Collector Dissipation (Tj < 150℃) (Tc = 25℃), Pc: 600W; (10)Mounting Torque, M5 Mounting: 1.47 to 1.96 N·m; (11)Weight: 190 Grams; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500V.

Features

CM75DY-28H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
