Product Summary

The CM75DY-12E is a power switching use insulated type module. The applications of the CM75DY-12E include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.

Parametrics

CM75DY-12E absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (Tc = 25℃), IC: 75 Amperes; (6)Peak Collector Current (Tj ≤ 150℃), ICM: 150A; (7)Emitter Current (Tc = 25℃), IE: 75A; (8)Peak Emitter Current, IEM: 150A; (9)Maximum Collector Dissipation (Tj < 150℃) (Tc = 25℃), Pc: 310W; (10)Mounting Torque, M5 Mounting: 1.47 to 1.96 N·m; (11)Weight: 190 Grams; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500V.

Features

CM75DY-12E features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

Diagrams

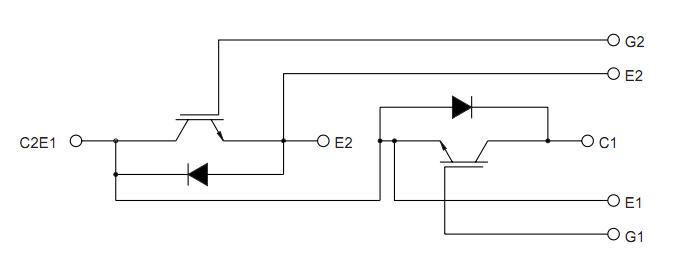

CM75DY-12E block diagram
