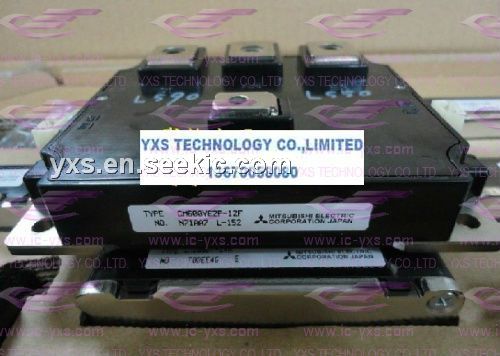

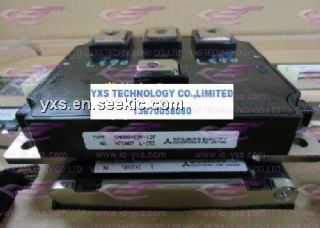

Product Summary
The CM600YE2N-12F is an IGBT module which has been designed for three level (neutral point clamped) topologies in applications requiring high efficiency operation and improved output waveform quality. The CM600YE2N-12F also provides significant benefits in applications where low output noise using small filter components is required or where long motor leads create Standing Wave Ratio (SWR) voltage surge issues. The applications of the CM600YE2N-12F include High freqency (30 kHz ~ 60 kHz) switching use: Gradient anplifier, Induction heating, Power supply, etc.
Parametrics
CM600YE2N-12F absolute maximum ratings: (1)Junction Temperature Tj: -40 to 150 ℃; (2)Storage Temperature Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E Short) VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E Short) VGES: ±20 Volts; (5)Collector Current DC (TC = 25℃) IC: 600 Amperes; (6)Peak Collector Current (Pulse)*2 ICM: 1200 Amperes; (7)Emitter Current (TC = 25℃) IE*1: 600 Amperes; (8)Peak Emitter Current (Pulse)*2 IEM*1: 1200 Amperes; (9)Maximum Collector Dissipation (TC = 25℃) PC*3: 1860 Watts; (10)Mounting Torque, Main Terminals (C1, AK, E2), M8 Screw (Max.): 95 in-lb; (11)Mounting Torque, Mounting Holes, M5 Screw (Max.): 30 in-lb; (12)Mounting Torque, C2, E1 Terminals, M4 Screw (Max.): 15 in-lb; (13)Weight (Typical): 740 Grams; (14)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.
Features
CM600YE2N-12F features: (1)Smaller Output Voltage Steps Reducing Surge Voltage; (2)Low Output Ripple Current; (3)Lower Modulation Frequency With Same Quality Output Waveform.

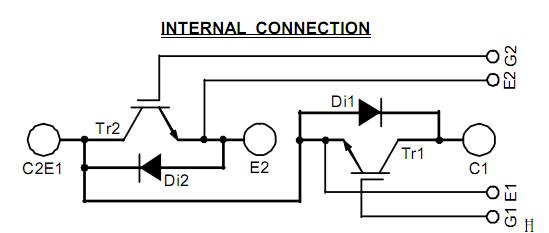

Diagrams
