Product Summary

The CM600HU-12F is an IGBT module. It is suitable for General purpose inverters & Servo controls, etc.

Parametrics

CM600HU-12F absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Maximum collector dissipation, PC: 1420W; (4)Junction temperature, Tj: -40 to 150℃; (5)Storage temperature, Tstg: -40 to 125℃; (6)Isolation voltage, Viso: 2500V.

Features

CM600HU-12F features: (1)IC: 600A; (2)VCES: 600V; (3)Insulated Type; (4)1-elements in a pack.

Diagrams

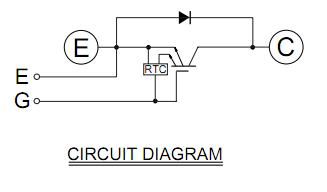

CM600HU-12F block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

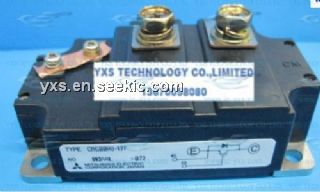

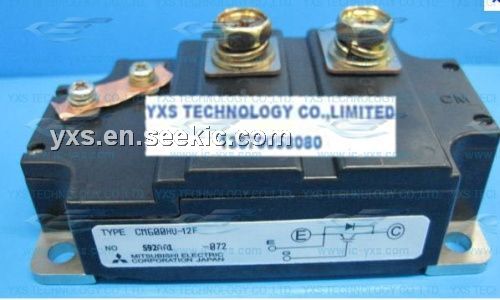

CM600HU-12F
CM600HU-12F

IGBT MOD SGL 600V 600A F SER
Data Sheet
0-1: $92.71
1-10: $88.23
10-100: $83.12
100-250: $81.84
250-500: $79.92
500-1000: $76.72
