CM600HN-5F

CM600HN-5F, IGBT Module, 250V, 600A, 1780W, MITSUBISHI

Rated 5 Rating 5 | reviews | Write a review

Price:: US $140.00~159.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 30 :	159.00 / Piece
31 ~ 40 :	150.00 / Piece
41 ~ 50 :	140.00 / Piece

PartNumber:: CM600HN-5F

Brand:: MITSUBISHI - MITSUBISHI | D/C: 09+

Availability:: Supply Ability: 1000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-29

From Other Seller

Part Number:CM600HN-5F
US $140.00 - 159.00
Quantity:

piece

Product Summary

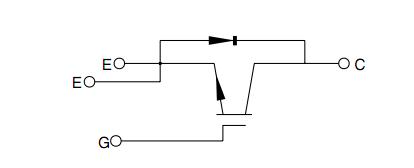

The CM600HN-5F is a Mitsubishi IGBT Module designed for use in switching applications. Each module consists of one IGBT in a single configuration, with a reverse connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM600HN-5F are UPS and Forklift.

Parametrics

CM600HN-5F absolute maximum ratings: (1)Junction Temperature Tj: -40 to 150 ℃; (2)Storage Temperature Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E Short) VCES: 250 Volts; (4)Gate-Emitter Voltage (C-E Short) VGES: ±20 Volts; (5)Collector Current (TC = 25℃) IC: 600 Amperes; (6)Peak Collector Current (Tj≤ 150℃) ICM: 1200 Amperes; (7)Emitter Current (TC = 25℃) IE: 600 Amperes; (8)Peak Emitter Current IEM: 1200 Amperes; (9)Maximum Collector Dissipation (TC = 25℃) Pc: 1780 Watts.

Features

CM600HN-5F features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diodes; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
