Product Summary
The CM600HA24H is a Single IGBTMOD H-Series Module. The applications of the CM600HA24H include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies, Laser Power Supplies.
Parametrics
CM600HA24H absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (Tc = 25℃), IC: 600 Amperes; (6)Peak Collector Current (Tj ≤ 150℃), ICM: 1200 Amperes; (7)Emitter Current (Tc = 25℃), IE: 600 Amperes; (8)Peak Emitter Current, IEM: 1200 Amperes; (9)Maximum Collector Dissipation (Tc = 25℃), Pc: 4100 Watts; (10)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.
Features
CM600HA24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery (135ns) Free-Wheel Diode; (4)High Frequency Operation (20-25kHz); (5)Isolated Baseplate for Easy Heat Sinking.

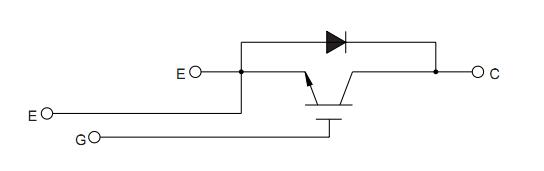

Diagrams
