Product Summary
The CM50TU-24H is a Mitsubishi IGBT Module designed for use in switching applications. The CM50TU-24H consists of six IGBTs in a three phase bridge configuration, with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM50TU-24H include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.
Parametrics
CM50TU-24H absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E-SHORT), VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E-SHORT), VGES: ±20 Volts; (5)Collector Current (TC = 25℃), IC: 50 Amperes; (6)Peak Collector Current, ICM: 100 Amperes; (7)Emitter Current (TC = 25℃), IE: 50 Amperes; (8)Peak Emitter Current, IEM: 100 Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj ≤ 150℃), Pc: 400 Watts.
Features
CM50TU-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

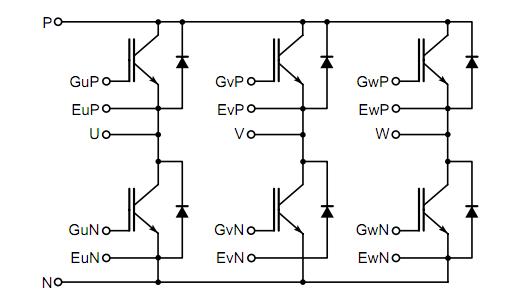

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() CM50TU-24H |
![]() |
![]() IGBT MOD 6PAC 1200V 50A U SER |
![]() Data Sheet |
![]()
|
|
||||||
