Product Summary

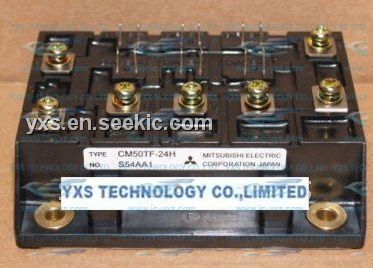

The CM50TF-24H is a Mitsubishi IGBT module. The CM50TF-24H consists of six IGBTs in a three phase bridge configuration, with each transistor having a reverse-connected superfast recovery free-wheel diode.
Parametrics
CM50TF-24H absolute maximum ratings: (1)Junction Temperature: –40℃ to 150℃; (2)Storage Temperature: –40℃ to 125℃; (3)Collector-Emitter Voltage (G-E SHORT): 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT): ±20 Volts; (5)Collector Current (TC = 25℃): 50 Amperes; (6)Peak Collector Current: 100Amperes; (7)Emitter Current (TC = 25℃): 50 Amperes; (8)Peak Emitter Current: 100Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj ≤ 150℃): 400 Watts; (10)Weight: 540 Grams; (11)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.
Features
CM50TF-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

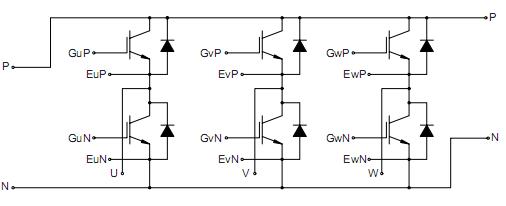

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM50TF-24H |
|
IGBT MOD 6PAC 1200V 50A H SER |
Data Sheet |
