Product Summary

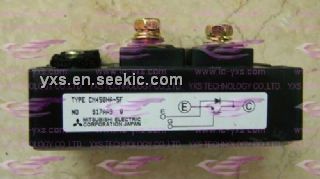

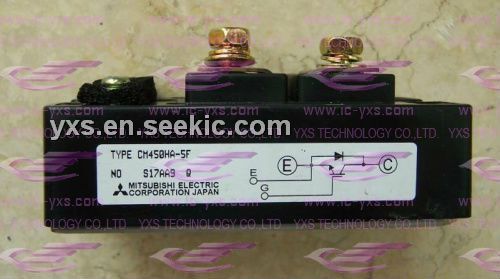

The CM450HA5F is an IGBT module. It is designed for use in switching applications. Each module consists of one IGBT in a single configuration, with a reverse connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM450HA5F are UPS, Forklift.
Parametrics
CM450HA5F absolute maximum ratings: (1)Junction Temperature: -40 to 150 ℃; (2)Storage Temperature: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E Short): 250 Volts; (4)Gate-Emitter Voltage (C-E Short): ±20 Volts; (5)Collector Current (TC = 25℃): 450 Amperes; (6)Peak Collector Current (Tj ≤ 150): 900Amperes; (7)Emitter Current (TC = 25℃): 450 Amperes; (8)Peak Emitter Current: 900 Amperes; (9)Maximum Collector Dissipation (TC = 25℃): 735 Watts; (10)Mounting Torque, M6 Main Terminal: 1.96 to 2.94 N·m; (11)Mounting Torque, M6 Mounting: 1.96 to 2.94 N·m; (12)Mounting Torque, M4 Terminal: 0.98 to 1.47 N·m; (13)Weight: 270 Grams; (14)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.
Features
CM450HA5F features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diodes; (4)High Frequency Operation; (5)Isolated Baseplate for Easy; (6)Heat Sinking.
