Product Summary

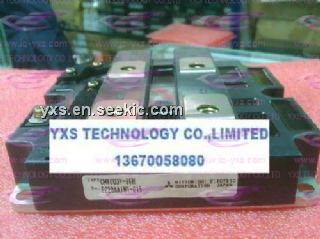

The CM400DY-66H is an IGBT module.
Parametrics
CM400DY-66H absolute maximum ratings: (1)VCES, Collector-emitter voltage VGE = 0V: 3300V; (2)VGES, Gate-emitter voltage VCE = 0V: ±20V; (3)IC, Collector current TC = 25℃: 400A; (4)ICM, Collector current Pulse (Note 1): 800A; (5)Pulse (Note 1): 3400W; (6)Tj, Junction temperature and Junction temperature: -40 to +150℃.
Features
CM400DY-66H features: (1)IC: 400A; (2)VCES: 3300V; (3)Insulated Type; (4)2-elements in a pack.

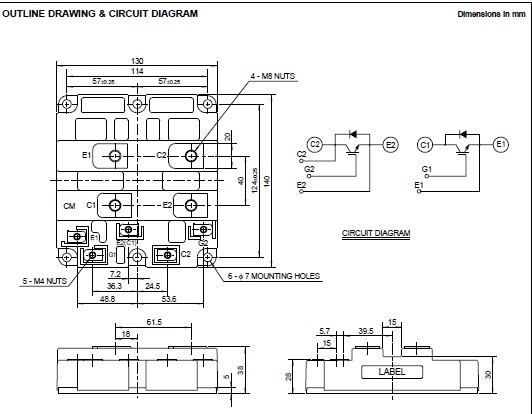

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM400DY-66H |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
