Product Summary

The CM20MD3-12H is a medium power switching use flat-base type module. The applications of the CM20MD3-12H include AC & DC motor controls, General purpose inverters, Servo controls, NC, Robotics, UPS.

Parametrics

CM20MD3-12H absolute maximum ratings: (1)Collector-emitter voltage: 600V; (2)Gate-emitter voltage: ±20V; (3)Collector Current: 20A, pulse: 40A; (4)Emitter Current: 20A, pulse: 40A; (5)Maximum collector dissipation: 57W.

Features

CM20MD3-12H features: (1)IC:20A; (2)VCES:600V; (3)Insulated Type; (4)CIB Module 3φ Inverter+3φ Converter+Brake; (5)UL Recognized Yellow Card No. E80276 (N), File No. E80271.

Diagrams

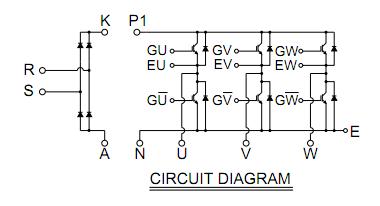

CM20MD3-12H block diagram
