Product Summary
The CM20LDL-12H is a medium power switching use insulated type module. The applications of the CM20LDL-12H include AC & DC motor controls, general purpose inverters, servo controls, NC, robotics.
Parametrics
CM20LDL-12H absolute maximum ratings: (1)Collector-emitter voltage, G – E Short, VCES: 600V; (2)Gate-emitter voltage, C – E Short, VCES: ±20V; (3)Collector Current, TC = 25℃, IC: 20A; PULSE, ICM: 40A; (4)Emitter Current, TC = 25℃, IE: 20A; PULSE, IEM: 40A; (5)Maximum collector dissipation, TC = 25℃, PC: 57W.
Features
CM20LDL-12H features: (1) IC: 20A; (2) VCES: 600V; (3) Insulated Type; (4) CIB Module, 3φ Inverter+3φ Converter + Brake; (5) UL Recognized.

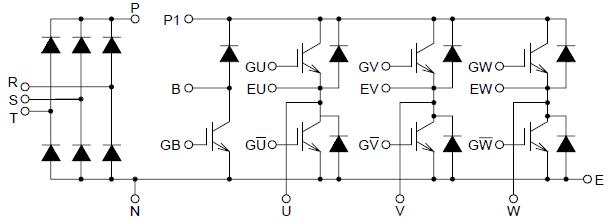

Diagrams
