Product Summary

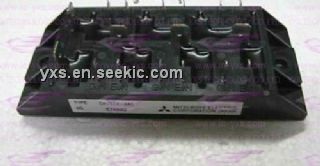

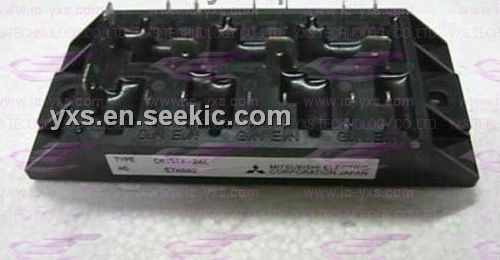

The CM15TDTF-24E is an IGBT module. It is designed for use in switching applications. The CM15TDTF-24E consists of six IGBTs in a three phase bridge configuration, with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking base-plate, offering simplified system assembly and thermal management. The applications of the CM15TDTF-24E are AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.

Parametrics

CM15TDTF-24E absolute maximum ratings: (1)Junction Temperature: -40 to +150 ℃; (2)Storage Temperature: -40 to +125 ℃; (3)Collector-Emitter Voltage (G-E SHORT): 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT): ±20 Volts; (5)Collector Current (TC = 25℃): 15 Amperes; (6)Peak Collector Current: 30 Amperes; (7)Emitter Current (TC = 25℃): 15 Amperes; (8)Peak Emitter Current: 30 Amperes; (9)Maximum Collector Dissipation: 100 Watts; (10)Mounting Torque, M5 Mounting: 1.47 to 1.96 N.m; (11)Weight: 150 Grams; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.

Features

CM15TDTF-24E features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

Diagrams

CM15TDTF-24E block diagram
