Product Summary

The CM1400DU-24NF is a Mitsubishi IGBT module. The applications of the CM1400DU-24NF are UPS & General purpose inverters, etc.

Parametrics

CM1400DU-24NF absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Gate-emitter voltage: ±20V; (3)Maximum collector dissipation: 3900W; (4)Junction temperature: -40 to 150℃; (5)Storage temperature: -40 to 125℃; (6)Isolation voltage: 2500Vrms.

Features

CM1400DU-24NF features: (1)IC: 1400A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

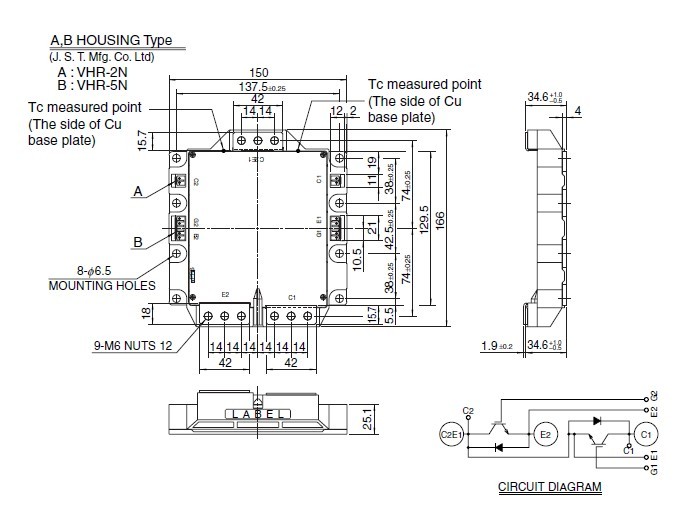

CM1400DU-24NF block diagram
