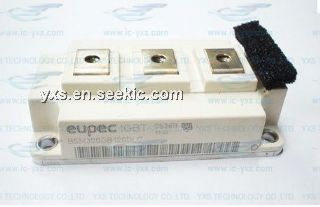

Product Summary
The BSM300GB120DLC is an IGBT Module. It is characterized by low drive power, low vce (sat), discrete super-fast recovery, ree-wheel diode, high frequency operation and more. The typical applications of the product include DC motor control, NC equipment, AC motor control, contact less switches, electric furnace temperature control, light dimmers, welders and so on.
Parametrics
BSM300GB120DLC absolute maximum ratings:(1)collector-emitter voltage, VCES: 1200 V at Tvj =25℃; (2)DC-collector current : IC,nom. =300 A at TC = 80 ℃; IC= 625 A at TC = 25 ℃; (3)repetitive peak collector current, ICRM: 600 A at tP = 1 ms, TC = 80℃ ; (4)total power dissipation, Ptot: 2,5 kW at TC= 25℃, Transistor; (5)gate-emitter peak voltage, VGES: +/- 20V V; (6)DC forward current, IF: 300 A; (7)repetitive peak form. current, IFRM: 600 A at tP = 1 ms; (8)Diode I2t - value, Diode, I2t: 19 k A2s at VR = 0V, tp = 10ms, TVj = 125℃; (9) Insulation test voltage, VISOL: 2.5kV at RMS, f = 50 Hz, t = 1 min.
Features
BSM300GB120DLC features: (1)Isolation internal insulation: Al2O3; (2)creepage distance: 20 mm; (3)clearance distance: 11 mm; (4)CTI comperative tracking index: 225; (5)mounting torque:M:3-6Nm; (6)terminal connection torque:M:2.5-5Nm; (7)weight G: 340 g.

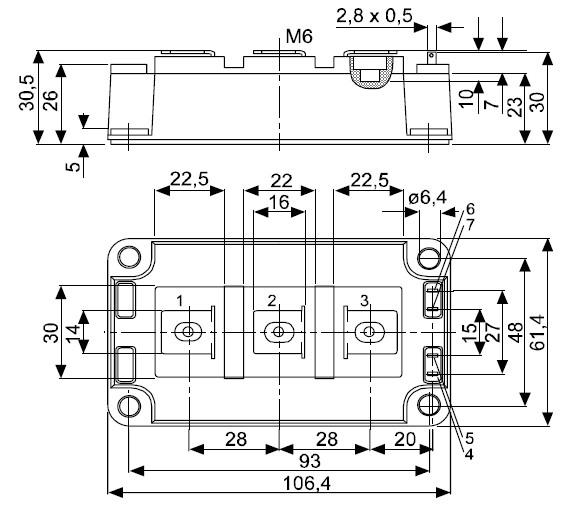

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BSM300GB120DLC |
Infineon Technologies |
IGBT Modules 1200V 300A DUAL |
Data Sheet |
|
|
||||||||
|
BSM300GB120DLC_E3256 |
Infineon Technologies |
IGBT Modules IGBT 1200V 300A |
Data Sheet |
|
|
||||||||
