Product Summary

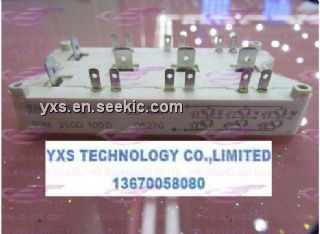

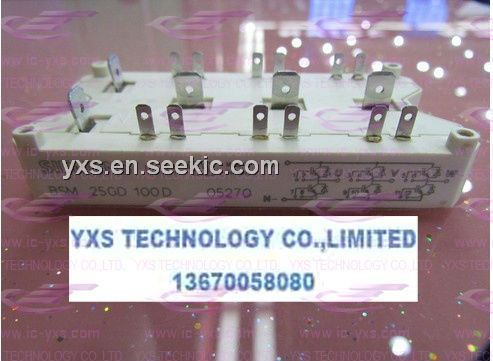

The BSM25GD100D is an IGBT module.
Parametrics
BSM25GD100D absolute maximum ratings: (1)collector-emitter voltage: 1000V; (2)collector-gate voltage: 1000V; (3)continuous collector current: 35A or 25A; (4)pulsed collector current: 70A or 50A; (5)operating and storage temperature range: -55 to +150℃; (6)power dissipation: 300W; (7)insulation test voltage: 2500Vac.
Features
BSM25GD100D features: (1)power module; (2)3-phase full bridge; (3)including fast free-wheel diodes; (4)package with insulated metal base plate; (5)package outlines/circuit diagram: 3.

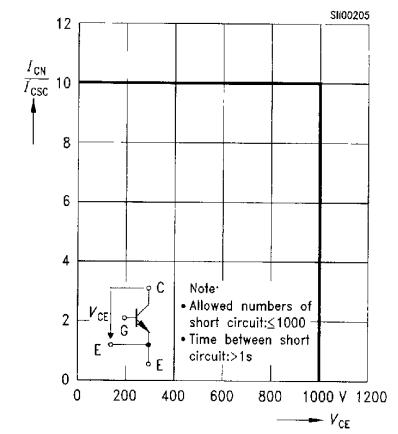

Diagrams
