Product Summary

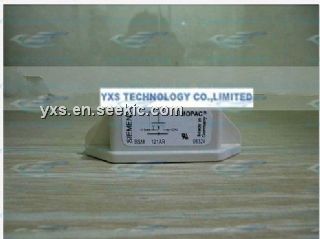

The BSM121AR is a SIMOPAC Module.

Parametrics

BSM121AR absolute maximum ratings: (1)Drain-source voltage, VDS: 200 V; (2)Drain-gate voltage, RGS = 20 kΩ, VDGR: 200; (3)Gate-source voltage, VGS: ± 20; (4)Continuous drain current, TC = 25℃, ID: 130 A; (5)Pulsed drain current, TC = 25℃, ID puls: 390; (6)Operating and storage temperature range, Tj, Tstg: -55 to + 150℃; (7)Power dissipation, TC = 25℃ Ptot: 700 W.

Features

BSM121AR features: (1)Power module; (2)Single switch; (3)N channel; (4)Enhancement mode; (5)Package with insulated metal base plate; (6)Package outline/Circuit diagram: 1.

Diagrams

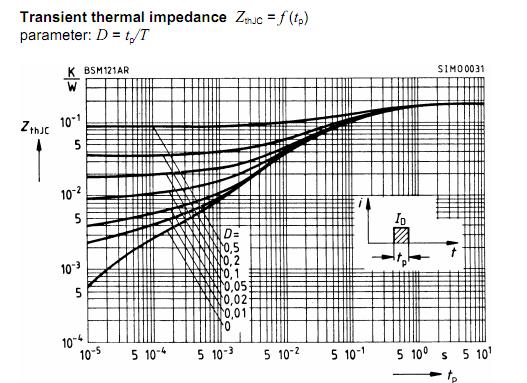

BSM121AR block diagram
