Product Summary

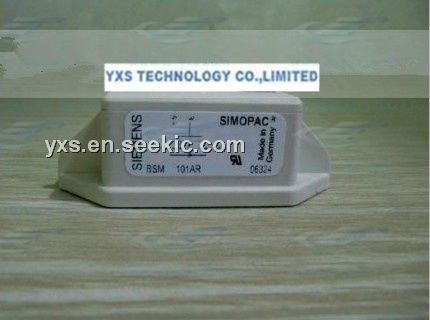

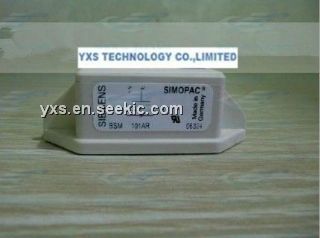

The BSM101AR is a SIMOPAC Module.
Parametrics

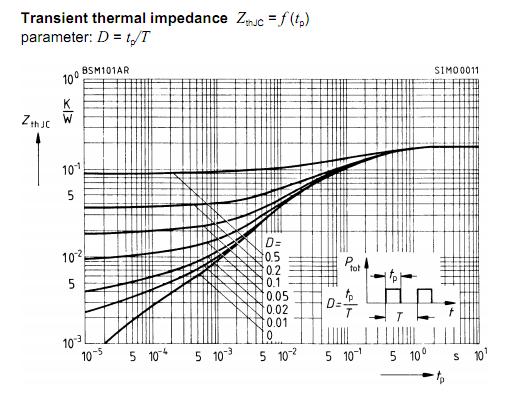

BSM101AR absolute maximum ratings: (1)Drain-source voltage, VDS: 50 V; (2)Drain-gate voltage, RGS = 20 kΩ VDGR: 50V; (3)Gate-source voltage, VGS: ±20V; (4)Continuous drain current, TC = 105℃, ID: 200 A; (5)Pulsed drain current, TC = 105℃, ID puls: 600A; (6)Operating and storage temperature range Tj,Tstg: -55 to +150℃; (7)Power dissipation, TC = 25℃, Ptot: 700 W; (8)Thermal resistance, chip-case, RthJC: ≤ 0.18 K/W; (9)Insulation test voltage2), t = 1 min. Vis: 2500 Vac.
Features
BSM101AR features: (1)Power module; (2)Single switch; (3)N channel; (4)Enhancement mode; (5)Package with insulated metal base plate; (6)Package outline/Circuit diagram: 1.
