Product Summary

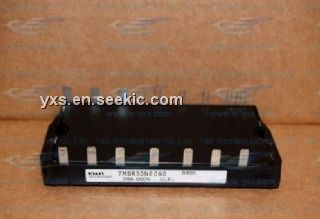

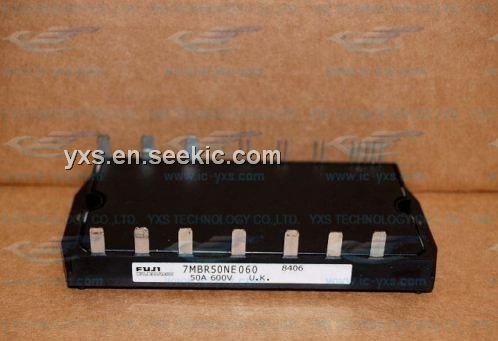

The 7MBR50NE-060 is a Power Integrated Module.
Parametrics
7MBR50NE-060 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 600V; (2)Gate -Emitter Voltage, VGES: ±20V; (3)Collector Current, IC Continuous: 50A; IC: PULSE 1ms, 100 A; -IC: PULSE 1ms, 50A; (4)Collector Power Dissipation, PC 1 device: 200 W; (5)Repetitive Peak Reverse Voltage, VRRM: 800V; (6)Non Repetitive Peak Reverse Voltage, VRSM: 900V; (7)Average Output Current, IO: 50Hz/60Hz sin. wave, 50A; (8)Surge Current (Non Repetitive) IFSM Tj=150℃, 10ms: 350A; (9)I2t, (Non Repetitive) Tj=150℃, 10ms: 648 A2s.
Features
7MBR50NE-060 features: (1)Included Rectifier and Brake Chopper; (2)Square RBSOA; (3)Low Saturation Voltage; (4)Overcurrent Limiting Function( ~ 3 Times Rated Current).
