Product Summary

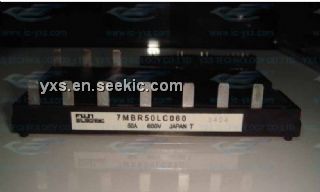

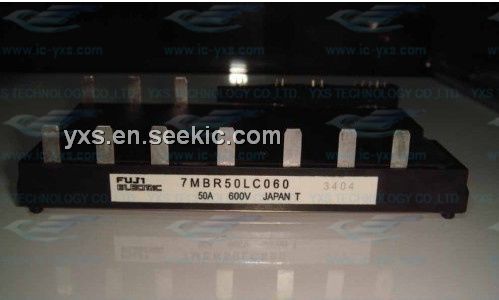

The 7MBR50LC-060 is a 1200V/50A/PIM IGBT module. The applications of the 7MBR50LC-060 are: Inverter for motor drive, AC and DC servo drive amplifier, Uninterruptible power supply.

Parametrics

7MBR50LC-060 absolute maximum ratings: (1)Operating junction temperature, Tj: +150℃; (2)Storage temperature, Tstg: -40 to +125℃; (3)Isolation between terminal and copper base, Tstg: AC 2500V; (4)voltage between thermistor and others, Viso: AC 2500V; (5)Mounting screw torque: 3.5 1N·m; (6)Collector-Emitter voltage, VCES: 1200V; (7)Gate-Emitter voltage, VGES: ±20V.

Features

7MBR50LC-060 features: (1)Low VCE(sat); (2)Compact package; (3)P.C. board mount; (4)Converter diode bridge, Dynamic brake circuit.

Diagrams

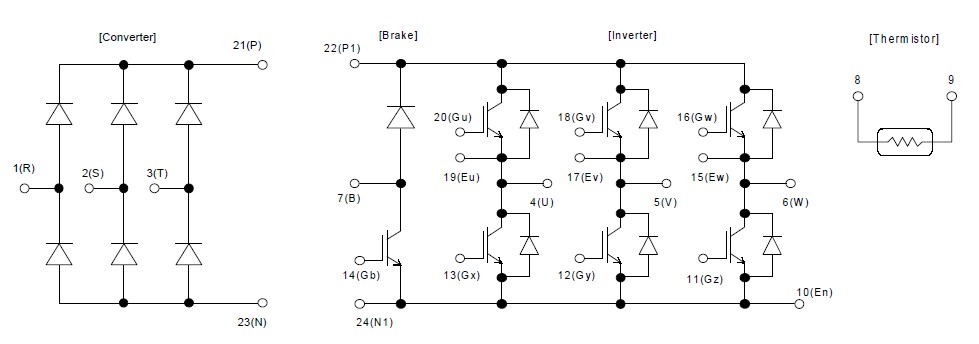

7MBR50LC-060 block diagram
