Product Summary
The 7MBR150RA-060 is an IGBT module. The applications of the 7MBR150RA-060 include Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
Parametrics
7MBR150RA-060 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 1200 V; (2)Gate-Emitter voltage, VGES: ±20 V; (3)Collector current, Ic, Continuous Tc=80℃: 150A; Icp 1ms Tc=80℃: 300A; -Ic: 150A; -Ic pulse, 1ms: 300A; (4)Collector power dissipation, Pc, 1 device: 885 W; (5)Brake Collector-Emitter voltage, VCES: 1200 V; (6)Gate-Emitter voltage, VGES: ±20 V; (7)Collector current, IC, Continuous Tc=80℃: 100A; ICP, 1ms Tc=80℃: 200A; (8)Collector power dissipation, PC, 1 device: 520 W; (9)Repetitive peak reverse voltage (Diode), VRRM: 1200 V.
Features
7MBR150RA-060 features: (1)Low VCE(sat); (2)Compact Package; (3)P.C.Board Mount Module; (4)Converter Diode Bridge Dynamic Brake Circuit; (5)RoHS compliant product.

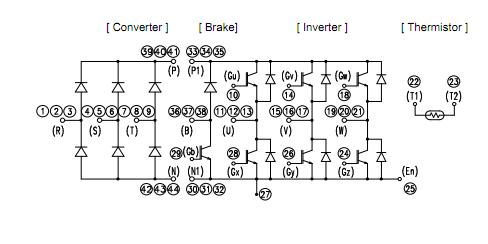

Diagrams
