The 6MBP40RUB060-01 is an IGBT module.
Parametrics
6MBP40RUB060-01 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 0 to 600 V; (2)Short Circuit Voltage, VSC: 200 to 400 V; (3)Collector Current, DC, IC: 400 A; 1ms, ICP: 800 A; Duty=68.6%, -IC: 400 A; (4)Collector Power Dissipation 1 device, PC: 1086 W; (5)Supply Voltage of Pre-Driver, VCC: -0.5 to 20 V; (6)Input Signal Voltage, Vin: -0.5 to VCC+0.5 V; (7)Alarm Signal Voltage, VALM: -0.5 to VCC V; (8)Alarm Signal Current, IALM: 20 mA; (9)Junction Temperature, Tj: 150℃; (10)Operating Case Temperature, Topr: -20 to 110℃; (11)Storage Temperature, Tstg: -40 to 125℃; (12)Solder Temperature, Tsol: 260℃; (13)Isolating Voltage, Viso: AC2500 Vrms.
Features
6MBP40RUB060-01 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built-in control circuit.

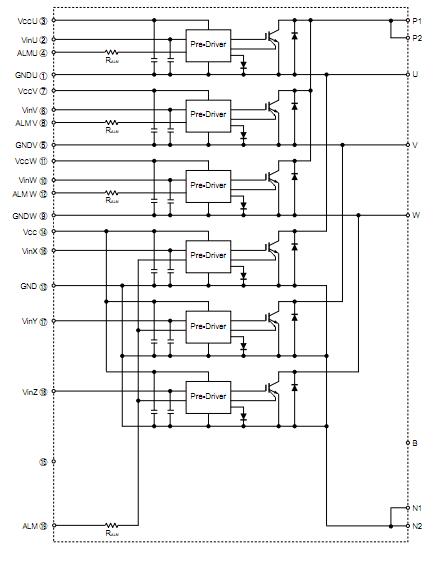

Diagrams
