Product Summary
The 6MBP20RTA060-01 is a triode transistor. The applications of it are AC and DC servo drive amplifier, Uninterruptible power supply, Industrial machines,such as welding machines.
Parametrics
6MBP20RTA060-01 absolute maximum ratings: (1)bus voltage: DC: 0V to 450V, surge: 0V to 500V, short operating: 200V to 400V; (2)collector-emitter voltage: 0V to 600V; (3)collector current: IC: 20A, ICP: 40A, -IC: 20A; (4)collector power dissipation: 103W; (5)supply voltage: -0.5V to 20V; (6)input signal voltage: -0.5V to VCC+0.5V; (7)input signal current: 1mA; (8)alarm signal voltage: -0.5V to VCC; (9)alarm signal current: 20mA; (10)junction temperature: 150℃; (11)operating case temperature: -20℃ to 100℃; (12)storage temperature: -40℃ to 125℃; (13)isolating voltage: 2500VAC; (14)solder temperature: 260℃; (15)screw torque: 2.0Nm.
Features
6MBP20RTA060-01 features: (1)High speed switching; (2)Low saturation voltage; (3)Voltage drive; (4)300A, 1400V.

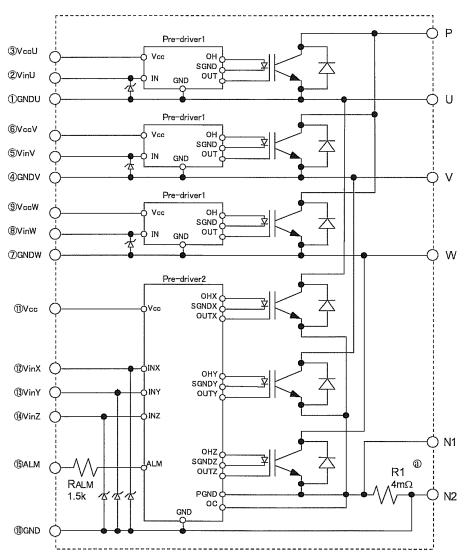

Diagrams
