Product Summary

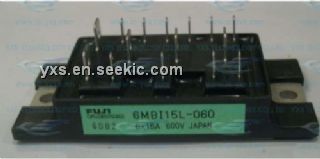

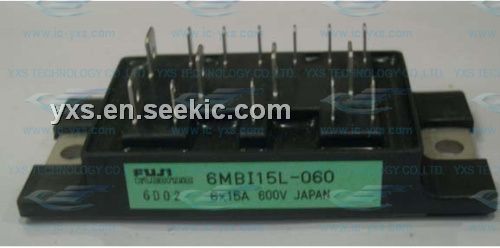

The 6MBI15L060 is an IGBT module. The applications of the device include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines.

Parametrics

6MBI15L060 absolute maximum ratings: (1)collector-emitter voltage, VCES: 600V; (2)gate-emitter voltage, VGES: ±20V; (3)collector current, continuous, IC: 15A; 1ms, IC pulse: 30A; contimuous, -IC: 15A; 1ms, -IC pulse: 30A; (4)max power dissipation, PC: 60W; (5)operating temperature, Tj: 150℃; (6)storagte temperature, Tstg: -40 to 125℃; (7)net weight: 150g; (8)isolation voltage, Visol: 2500V.

Features

6MBI15L060 features: (1)high speed switching; (2)low saturation voltage; (3)voltage drive.

Diagrams

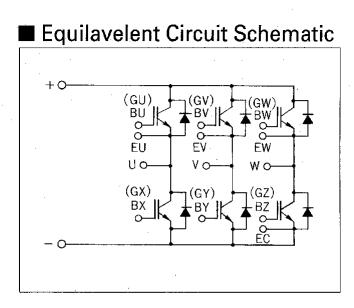

6MBI15L060 block diagram
