The 3MBI150SX-120 is an IGBT Module. The applications of the 3MBI150SX-120 include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply, Industrial machines, such as Welding machines.
Parametrics
3MBI150SX-120 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 1200V; (2)Gate-Emitter voltage, VGES: ±20V; (3)Collector current, IC, Continuous, Tc=25℃: 200A; Tc=80℃: 150A; (4)ICp, 1ms, Tc=25℃: 400A; Tc=80℃: 300A; -IC: 150A; -IC pulse: 300A; (5)Collector Power Dissipation, PC, 1 device: 735W; (6)Junction temperature, Tj: 150℃; (7)Storage temperature, Tstg: -40 to 125℃; (8)Isolation voltage, between terminal and copper base, AC:1min, Viso: 2500v; (9)Screw Torque, Mounting: 3.5N·m.
Features
3MBI150SX-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

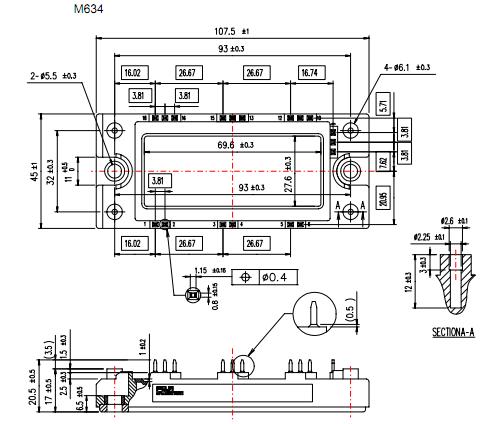

Diagrams
