Product Summary

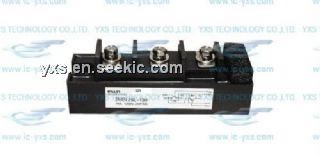

The 2MBI75L-120 is an IGBT module. The applications of the 2MBI75L-120 include Inverter for motor drive, AC and DC servo drive amplifier, Uninterruptible power supply, Industrial machines, such as welding machines.

Parametrics

2MBI75L-120 absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector current, IC: 75A; ICP: 150A; -IC: 75A; -ICP: 150A; (4)Power dissipation, PA: 600W; (5)Operating temperature, Tj: 150℃; (6)Storage temoerature, Tstg: -40 to 125℃; (7)Isolation voltage, Visol: 2500V.

Features

2MBI75L-120 features: (1)High speed switching; (2)Low saturation voltage; (3)Voltage drive.

Diagrams

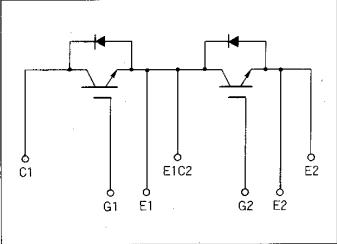

2MBI75L-120 block diagram
