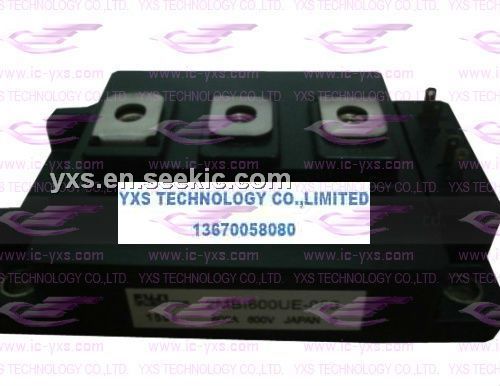

Product Summary

The 2MBI600UE-060 is an insulated gate bipolar transistor. The applications of the 2MBI600UE-060 include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply, industrial machines, such as welding machines.

Parametrics

2MBI600UE-060 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 650V; (2)Gate -Emitter Voltage, VGES: ±20V; (3)Collector Current: Continuous, IC: 600A; 1ms, Icp: 1200A; Continuous, -IC: 600A; 1ms, -IC PULSE: 1200A; (4)Collector Power Dissipation, 1 device, PC: 2400 W; (5)Junction Temperature, Tj: +150 ℃; (6)Storage Temperature, Tstg: -40 to +125 ℃; (7)Isolation Voltage, between terminal and copper, A.C. 1min., Vis: 2500 VAC; (8)Screw Torque, Mounting: 3.5Nm; Terminals: 4.5Nm.

Features

2MBI600UE-060 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

2MBI600UE-060 block diagram
