Product Summary

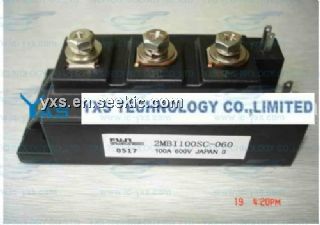

The 2MBI100SC-060 is an IGBT module.
Parametrics
2MBI100SC-060 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 1200V; (2)Gate-Emitter voltaga VGES: 20V; (3)Collector current: 300A; (4)Max. power dissipation PC: 780W; (5)Operating temperature Tj: 150℃; (6)Storage temperature Tstg: -40 to +125℃.
Features
2MBI100SC-060 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.
