Product Summary

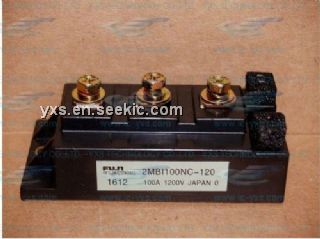

The 2MBI100NC-120 is an IGBT module. Applications of the 2MBI100NC-120 are high power switching, A.C. motor controls, D.C. motor controls, uninterruptible power supply.
Parametrics
2MBI100NC-120 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200 V; (2)Gate -Emitter Voltage VGES: ± 20 V; (3)Collector Current Continuous IC: 100 A; (4)Collector Current 1ms IC PULSE: 200 A; (5)Collector Current Continuous -IC: 100 A; (6)Collector Current 1ms -IC PULSE: 200 A; (7)Max. Power Dissipation PC: 780 W; (8)Operating Temperature Tj: +150 ℃; (9)Storage Temperature Tstg: -40 ~ +125 ℃; (10)Isolation Voltage A.C. 1min. Vis: 2500 V.
Features
2MBI100NC-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).

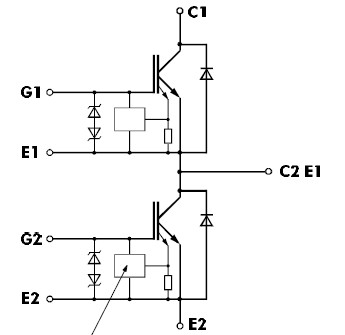

Diagrams
