Product Summary
The 1MBI75L-060 is an IGBT module. The applications of the 1MBI75L-060 include ideal for chopper application, AC and DC servo drive supply, uniterruptible power supply, industrial machines, such as welding machines.
Parametrics
1MBI75L-060 absolute maximum ratings: (1)Collecter-Emitter Voltage VCES: 600 V; (2)Gate-Emitter Voltage VGES: ±20 V; (3)Collecter Current Continuous IC: 75 A; (4)1ms IC pulse: 150 A; (5)Continuous -IC: 75 A; (6)1ms -IC pulse: 150 A; (7)Max. Power Dissipation PC: 300 W; (8)Operating Temperature Tj: +150 ℃; (9)Storage Temperature Tstg: -40 to +125 ℃; (10)Net. Weight: 415 g; (11)Isolation Voltage AC. 1min. Visol: 2500 V.
Features
1MBI75L-060 features: (1)Low Saturation Voltage; (2)Voltage Drive; (3)Isolated package; (4)High speed switching.

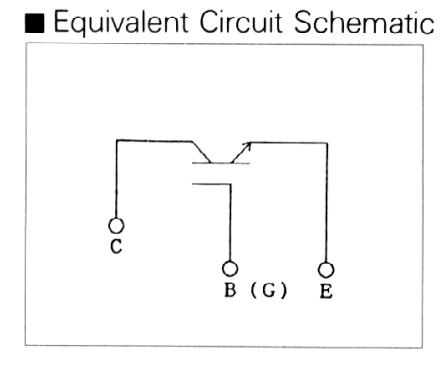

Diagrams
