Product Summary

The 1MBI400S-120B is an IGBT Module with 1200V / 400A in one-package. The device is designed for inverter for Motor drive, AC and DC Servo drive amplifier, uninterruptible power supply, industrial machines, such as Welding machines, etc.

Parametrics

1MBI400S-120B absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 120v; (2)Gate-Emitter voltaga, VGES: ±20v; (3)Collector current: Continuous: IC: 600A at Tc=25℃; 400A at Tc=80℃; 1ms: IC pulse: 1200A at Tc=25℃; 800 at Tc=80℃; -IC: 400A; 1ms: -IC pulse: 800A; (4)Max. power dissipation, PC: 3100W; (5)Operating temperature, Tj: +150℃; (6)Storage temperature, Tstg: -40 to +125℃; (7)Isolation voltage, Vis: AC 2500(1 min)v; (8)Screw torque: Mounting: 3.5 N.m; Terminals: 4.5N.m; Terminals: 1.7N.m.

Features

1MBI400S-120B features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

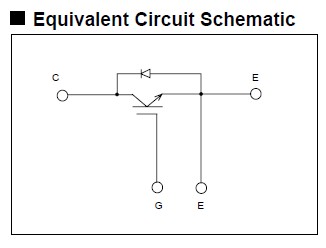

1MBI400S-120B block diagram
