The 1MBI400SX-120 is an IGBT module. Its applications include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.
Parametrics
1MBI400SX-120 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)gate-emitter voltage, VGES: ±20V; (3)collector current, continuous, IC: 600A when Tc=25℃; 400A when Tc=80℃; 1ms, IC pulse: 1200A when TC=25℃; 800A when Tc=80℃; -IC: 400A; 1ms, -IC pulse: 800A; (4)max power dissipation, PC: 3100W; (5)operating temperature, Tj: +150℃; (6)storage temperature, Tstg: -40 to +125℃; (7)isolation voltage, Vis: AC2500(1min)V; (8)screw torque, mounting: 3.5Nm; terminals: 4.5Nm; terminals: 1.7Nm.
Features
1MBI400SX-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

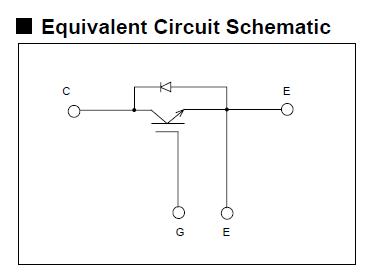

Diagrams
