Product Summary
The 1MBI400N-060 is an IGBT module. The applications of it are High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
1MBI400N-060 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200V; (2)Gate -Emitter Voltage: ±20V; (3)Collector Current: IC: 400A, ICpulse: 800A, -IC: 400A, -ICpulse: 800A; (4)Max. Power Dissipation: 3100W; (5)Operating Temperature: +150℃; (6)Storage Temperature: -40℃ to +125℃; (7)Isolation Voltage: 2500V.
Features
1MBI400N-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).

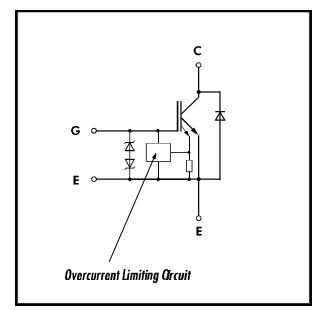

Diagrams
