Product Summary
The 1MBI100L-060 is an IGBT module.
Parametrics
1MBI100L-060 absolute maximum ratings: (1)Repetitive peak reverse voltage VRRM: 1600V; (2)Non-repetitive peak reverse voltage VRSM: 1760V; (3)On the conditions of 50Hz/60Hz sine wave Tc=110℃, Average output current IO: 100A; (4)One cycle surge current: 1000A; (5)Collector-Emitter voltage VCES: 1400V; (6)Gate-Emitter voltage VGES: ±20V; (7)Storage junction temperature Tstg: -40 to +125℃; (8)Isolation voltage Viso: 2500V; (9)Mounting screw torque: 2.0 to 2.5 N.m.
Features
1MBI100L-060 features: (1)Compact Package; (2)P.C. Board Mount Module; (3)Converter Diode Bridge Dynamic Brake Circuit.

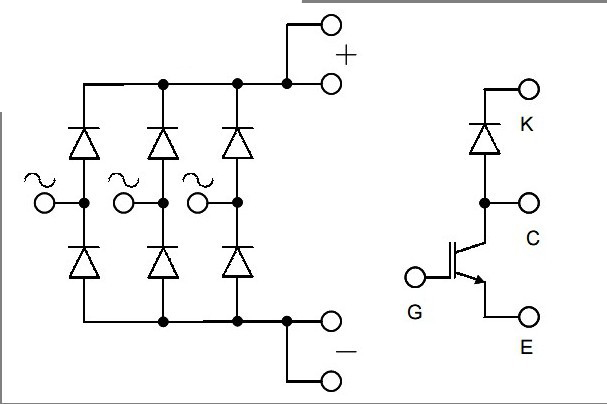

Diagrams
