S1A12000

s1a12000, sip reed relay, 30g, 200VDC, 2000Hz, dip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.73~0.98 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 20 :	0.98 / Piece
20 ~ 60 :	0.86 / Piece
60 ~ 80 :	0.73 / Piece

PartNumber:: S1A12000

Brand:: COSMO Electronics Corporation - Cosmo | D/C:

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-29

From Other Seller

Part Number:S1A12000
US $0.73 - 0.98
Quantity:

piece

Product Summary

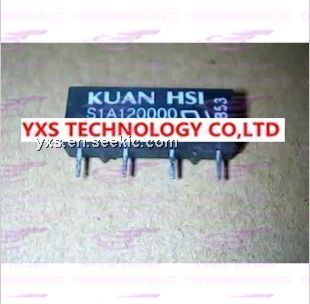

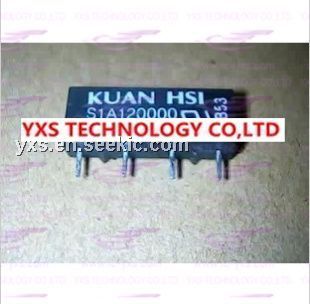

The s1a12000 is a sip reed relay.

Parametrics

s1a12000 absolute maximum ratings: (1)Contact Resistance: 100mW max. initial; (2)Operate Time: 0.5msec max.; (3)Insulation Resistance: 10 W min.; (4)Power: 10VA max.; (5)Switching Voltage: 200VDC max.; (6)Switching Current: 0.5Amps max.; (7)Carry Current: 1.0Amps max.; (8)Minimum Breakdown Voltage: 250VDC across open contact; (9)Operating Temperature: -40°C ~ +85°C; (10)Storage Temperature: -50°C ~ +125°C; (11)Minimum Permissible Load: 100mVDC 10 µA; (12)Vibration: 20g (10 ~ 2000Hz); (13)Shock: 30g (11ms. 1/2 sine wave); (14)Resonant Frequency: 3.5KHz.

Features

s1a12000 features: (1)Molded epoxy body; (2)High isolation coil/contact; (3)Can make high voltage contact; (4)Sealed construction permits automatic flow soldering and cleaning.
