Product Summary
The jz1af-12v is designed as a small sized power relay. And it can be used in (1)Microwave oven (fan, inside lamp); (2)Machineries which need electrical noise resistance and surge resistance,(Ex. hot-water heater).
Parametrics
jz1af-12v absolute maximum ratings: (1)Arrangement: 1 Form A; (2)Initial contact resistance: 100 mΩ; (3)Contact material: Gold-clad silver alloy; (4)Temperature rise: Max. 45°C at max. switching current; (5)Operate time (at nominal voltage): Approx. 4 ms; (6)Release time: Approx. 2 ms.
Features
jz1af-12v features: (1)Small sized flat type: 22x14x11.6 mm .866 x.551 x.457 inch; (2)High dielectric withstanding: 10,000 V surge in ms between coil and contact; (3)High electrical noise immunity; (4)High sensitivity type available.

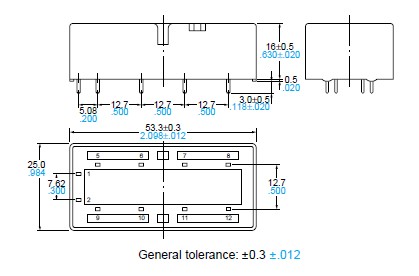

Diagrams
