Product Summary

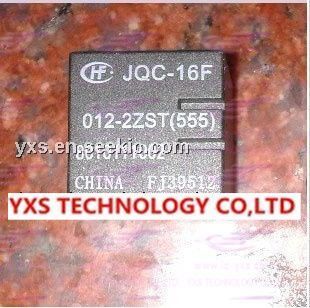

The jqc-16f 012-2zst is an automotive Relay. Its typical applications include: doorlocking systems, lmmobilizers, seat adjustment, seatbelt prevention, sunproof, window motors control, power door & windows.

Parametrics

jqc-16f 012-2zst absolute maximum ratings: (1)Contact rating (res. load): 20A 14VDC; (2)Max. switching voltage: 40VDC; (3)Max. switching current: 25A; (4)Mechanical life: 1 × 10 7 OPS; (5)Electrical life: 2 × 10 5 OPS; (6)Coil power: 0.56W.

Features

jqc-16f 012-2zst features: (1)silent version also available; (2)20A switching capability; (3)extremely small relay; (4)slim 1C type & twin type available; (5)two separate systems for twin type.

Diagrams

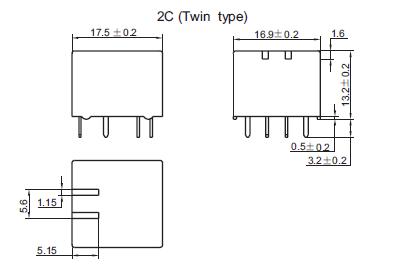

jqc-16f 012-2zst package dimensions
