Product Summary
The G6B-2114P-5V is a sub-miniature relay that switches up to 5 A.
Parametrics
G6B-2114P-5V absolute maximum ratings: (1)Rated voltage: 5 VDC; (2)Rated current: 40 mA; (3)Coil resistance: 125 Ω; (4)Coil inductance (H)(ref. value), Armature OFF: 0.28; Armature ON: 0.26; (5)Must operate voltage: 70% max. of rated voltage; (6)Must release voltage: 70% min. of rated voltage; (7)Max. voltage: 160% of rated voltage (at 23°C); (8)Power consumption: Approx. 200 mW.
Features
G6B-2114P-5V features: (1)Sub-miniature: 20 x 10 x 10 mm (L x W x H); (2)Low power consumption: 200 mW; (3)Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (4)Single- and double-winding latching types also available.

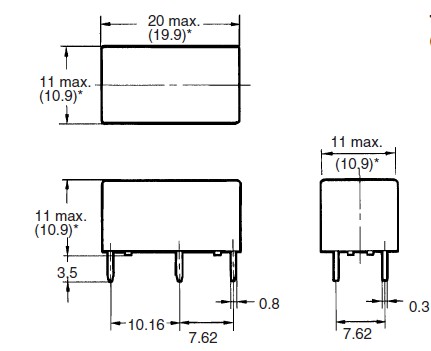

Diagrams
