Product Summary
The V23076-A1001-C133 is an automotive relay.
Parametrics
V23076-A1001-C133 absolute maximum ratings: (1)Ambient temperature, DC coil: -40 to +105°C; (2)Climatic cycling with condensation, EN ISO 6988: 3 cycles, storage 8/16h; (3)Temperature cycling (shock), IEC 60068-2-14, Na: 20 cycles, -40/+85°C (dwell time 1h); (4)Corrosive gas, IEC 60068-2-42: 10 days; (5)Packaging unit sealed version: 300 pcs.
Features
V23076-A1001-C133 features: (1)limiting continuous current 45a; (2)wide voltage range; (3)24vdc coil versions available; (4)for high current versiorefer to power relay k-s .

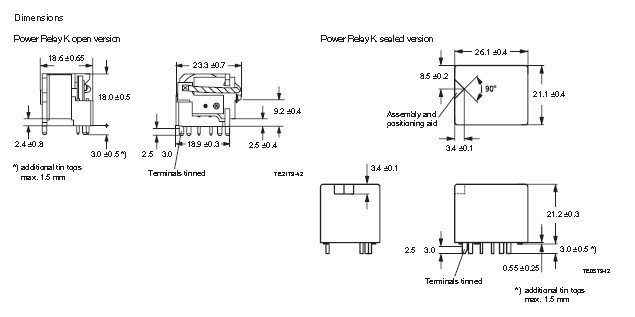

Diagrams
