Product Summary

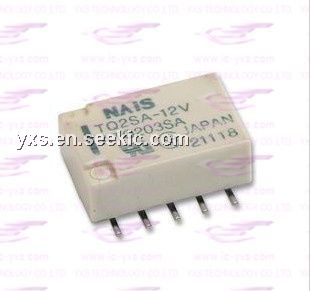

The TQ2SA-12V is a low-profile surface-mount relay.

Parametrics

TQ2SA-12V absolute maximum ratings: (1) Arrangement: 2 Form C; (2) Initial contact resistance, max.(By voltage drop 6V DC 1A): 75mΩ; (3)Contact material: Gold-clad silver alloy; (4)Nominal switching capacity (resistive load): 2A 30V DC,0.5A 125V AC; (5)Max. Switching power (resistive load): 60W, 62.5VA; (6) Max. Switching voltage: 220V DC, 125V AC; (7) Max. Switching current: 2A; (8) Min. switching capacity: 10μA 10mV DC; (9) Single side stable: 140mW (1.5 to 12V DC), 200mW (24V DC), 300mW (48V DC); (10)1 coil latching: 70mW (1.5 to 12V DC), 100mW (24V DC); (11)2 coil latching: 140mW (1.5 to 12V DC), 200mW (24V DC).

Features

TQ2SA-12V features: (1)Low-profile: 6mm .236 inch in height comforming to EIA standards (Tape height: max. 6.5 mm .256 inch ); (2)Tape and reel package is available as standard packing style; (3)Surge withstand between contacts and coil: 2,500 V; (4)Breakdown voltage between contacts and coil: 1,500 V; (5)High capacity: 2A; (6)High sensitivity: 2 Form C; 140mW power consumption (Single side stable type).

Diagrams

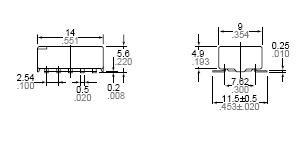

TQ2SA-12V pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TQ2SA-12V
TQ2SA-12V

Panasonic Electric Works

Low Signal Relays - PCB 2A 12VDC DPDT NON-LATCHING SMD

Data Sheet

0-1: $1.96
1-25: $1.90
25-50: $1.80
50-100: $1.51
TQ2SA-12V-X
TQ2SA-12V-X

Panasonic Electric Works

Low Signal Relays - PCB Low Profile 12V 2Form C 2A 30VDC SMD

Data Sheet

0-500: $1.37
500-1000: $1.33
1000-2500: $1.28
2500-5000: $1.21
TQ2SA-12V-Z
TQ2SA-12V-Z

Panasonic Electric Works

Low Signal Relays - PCB 2 AMP 12VDC DPDT NON-LATCHING

Data Sheet

0-1: $2.06
1-25: $1.88
25-50: $1.68
50-100: $1.43
100-500: $1.31
