Product Summary

The SP4-DC12V is designed as a 15A (2C), 10A (4C) compact power relay with high sensitivity.

Parametrics

SP4-DC12V absolute maximum ratings: (1)Arrangement: 2 Form C, 4 Form C; (2)Initial contact resistance: 30 mΩ; (3)Contact material: gold flashed silver alloy; (4)Temperature rise: Max. 40°C with nominal coil voltage and at nominal switching capacity; (5)Operate time (at nominal voltage): Max. 30 ms (Approx. 25 ms); (6)Release time: Max. 20 ms (Approx. 15 ms).

Features

SP4-DC12V features: (1)high vibration/shock resistance vibration resistance: 18 G, amplitude 3 mm (10 to 55 Hz) and shock resistance: 40 G (11 ms); (2)latching types available; (3)high sensitivity in small size 150 mW pick-up, 300 mW nominal operating power; (4)wide switching range from 1 mA to 15 A (2C) and 10 A (4C).

Diagrams

SP4-DC12V dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

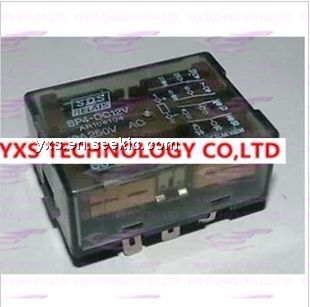

SP4-DC12V
SP4-DC12V

Panasonic Electric Works

General Purpose / Industrial Relays 10A 12VDC 4PDT PLUG-IN

Data Sheet
