Product Summary

The S8VS-03005 is a switch mode power supplier.

Parametrics

S8VS-03005 absolute maximum ratings: (1)Operating ambient temperature: Refer to the derating curve in . (with no icing or condensation); (2)Storage temperature: -25 to 65°C; (3)Operating ambient humidity: 25% to 85% (Storage humidity: 25% to 90%); (4)Insulation resistance: 100 MΩ min. (between all outputs/ alarm outputs and all inputs/ PE terminals) at 500 VDC; (5)Output indicator: Yes (color: green); (6)Series operation: Yes for up to 2 Power Supplies (with external diode); (7)Load variation influence: 1.5% max. (with rated input, 0 to 100% load); (8)Temperature variation influence: 0.05%/°C max..

Features

S8VS-03005 features: (1)Mount to DIN Rail; (2)Complies with SEMI F47-0706 (200-VAC input); (3)RoHS-compliant; (4)Mounting directly to the panel is possible; (5)Three mounting directions (standard, horizontal, facing horizontal); (6)Compact and thin: 22.5 × 85 × 96.5 mm (W × H × D).

Diagrams

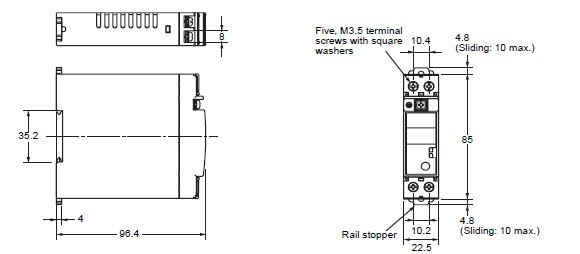

S8VS-03005 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
S8VS-03005
S8VS-03005

Omron Industrial

DIN Rail Power Supplies 30W 5V 100-240 VAC

Data Sheet

0-1: $61.24
1-10: $59.39
10-25: $56.46
25-50: $52.92
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
S8VS-01505
S8VS-01505

Omron Industrial

DIN Rail Power Supplies 5V 2A Out 100-240AC 10W Switching

Data Sheet

0-1: $46.66
1-10: $45.25
10-25: $43.00
25-50: $40.32
S8VS-01512
S8VS-01512

Omron Industrial

DIN Rail Power Supplies 12V 100-240 VAC IN 1.2A Out 15W rating

Data Sheet

0-1: $46.66
1-10: $45.25
10-25: $42.47
25-50: $40.32
S8VS-01524
S8VS-01524

Omron Industrial

DIN Rail Power Supplies 24V .65A out 100-240VAC INPT

Data Sheet

0-1: $46.66
1-10: $45.25
10-25: $42.47
25-50: $40.32
S8VS-03005
S8VS-03005

Omron Industrial

DIN Rail Power Supplies 30W 5V 100-240 VAC

Data Sheet

0-1: $61.24
1-10: $59.39
10-25: $56.46
25-50: $52.92
S8VS-03012
S8VS-03012

Omron Industrial

DIN Rail Power Supplies 12V 2.5A Out 30W 100-240AC in switch

Data Sheet

0-1: $81.26
1-10: $68.80
10-25: $63.27
25-50: $60.86
S8VS-03024
S8VS-03024

Omron Industrial

DIN Rail Power Supplies 24V 1.3A Out 30W 100-240AC in switch

Data Sheet

0-1: $61.24
1-10: $59.39
10-25: $55.74
25-50: $52.92
