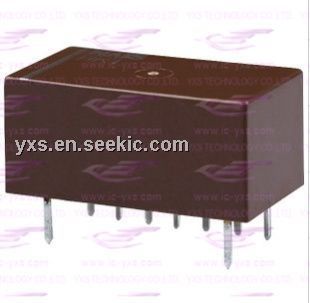

The RK1-5V is a rk-relay.
Parametrics
RK1-5V absolute maximum ratings: (1)Arrangement: 1 Form C; (2)Initial contact resistance, max. (By HP4328A): 100 mΩ; (3)Max. switching power: 10 W; (4)Max. switching voltage: 30 V DC; (5)Max. switching current: 0.5 A; (6)coil latching: 400 mW; (7)Between open contacts: 500 Vrms; (8)Conditions for operation, transport and storage (Not freezing and condensing at low temperature)Ambient temp: –40°C to 60°C; (9)Unit weight: Approx. 4.4 g.

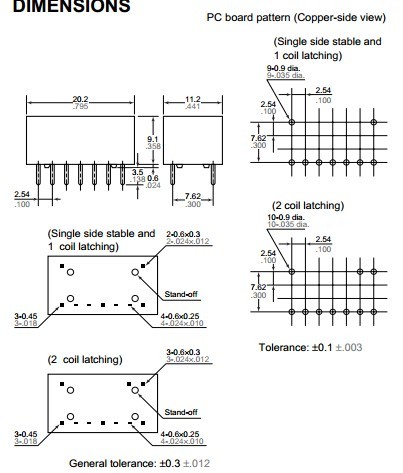

Features
RK1-5V features: (1)Excellent high frequency characteristics Isolation: Min. 60dB (at 1.5 GHz); Insertion loss: Max. 0.3dB (at 900 MHz); (2)V.S.W.R.: Max. 1.5 (at 900MHz); (3)High sensitivity in small size Size: 20.2 × 11.2 × 9.7 mm Nominal power consumption: 200 mW (single side stable type); (4)Sealed construction for automatic cleaning; (5)Latching types are also available.
