Product Summary
The RA4-24W-K is a miniature relay for PCBs.
Parametrics
RA4-24W-K absolute maximum ratings: (1)Resistance (initial): Maximum 100 mW (at 1 A 6 VDC); (2)Rating (resistive): 0.5 A 120 VAC or 1 A 24 VDC; (3)Maximum Carrying Current: 2 A; (4)Maximum Switching Power: 60 VA, 24 W; (5)Maximum Switching Voltage: 250 VAC, 220 VDC; (6)Maximum Switching Current :2 A; (7)Minimum Switching Load*1: 0.01 mA 10 mVDC; (8)Nominal Power (at 20℃): 0.2 W; (9)Operate Power (at 20℃): 0.1 W; (10)Operating Temperature: –40℃ to +80℃ (no frost).
Features
RA4-24W-K features: (1)Ultra high sensitivity; (2)High reliability-bifurcated contacts; (3)Conforms to FCC rules and regulations Part 68: Dielectric strength 1,500 VAC between coil and contacts, Surge strength 1,500 V; (4)UL, CSA recognized; (5)Wide operating range; (6)DIL pitch terminals; (7)Plastic sealed type backfilled with nitrogen; (8)Latching type available.

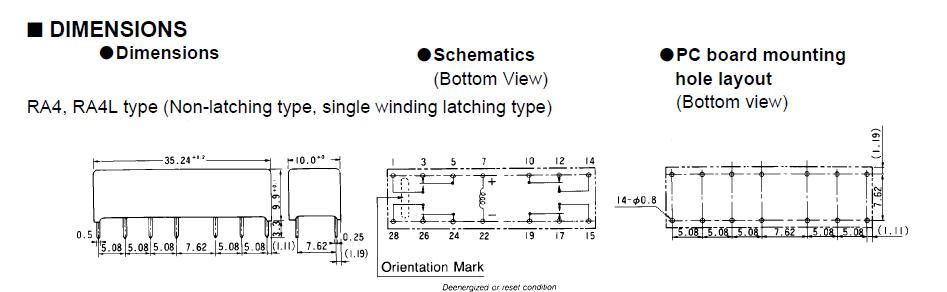

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 RA4-24W-K |
Fujitsu |
Low Signal Relays - PCB Mini Signal 24VDC |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
RA4-1.5W-K |
Fujitsu |
Low Signal Relays - PCB SIGNAL |
Data Sheet |
Negotiable |
|
||||
|
RA4-12W-K |
Fujitsu |
Low Signal Relays - PCB Mini Signal 12VDC |
Data Sheet |
Negotiable |
|
||||
|
RA4-18W-K |
Fujitsu |
Low Signal Relays - PCB Mini Signal 18VDC |
Data Sheet |
Negotiable |
|
||||
|
RA4-24W-K |
Fujitsu |
Low Signal Relays - PCB Mini Signal 24VDC |
Data Sheet |
Negotiable |
|
||||
|
RA4-3W-K |
Fujitsu |
Low Signal Relays - PCB SIGNAL |
Data Sheet |
Negotiable |
|
||||
|
RA4-4.5W-K |
Fujitsu |
Low Signal Relays - PCB SIGNAL |
Data Sheet |
Negotiable |
|
||||
