Product Summary
The RA24W-K is a 24 Watts Desktop Adapter.
Parametrics
RA24W-K absolute maximum ratings: (1)Input Voltage Range: 90~264VAC; (2)Input Current (rms): 0 5A Max.; (3)Efficiency: 75% typ. at full load Up to 79% for CEC compliant models; (4)Standby Power: < 0.3W @ no load for CEC compliant models; (5)Output Voltage: 3V ~ 50V, factory preset; (6)Voltage Regulation: ±5% max.; (7)Max. Output Power: 24W; (8)Operating Temperature: 0°C ~ 40°C; (9)Storage Temperature: -20°C ~ 85°C; (10)Operating Humidity: 20% to 90% RH; (11)Protections: OVP, OLP, SCP; (12)Safety Standard: IEC/UL/EN60950-1, CE, CB; (13)EMC Standard: EN55022 (CISPR22)class B, EN61000-(3-x/4-x); (14)Standard Output Connector: Barrel plug; (15)Standard Output Cable / Length: UL1185, #18AWG / 5 F.
Features
RA24W-K features: (1)Universal input; (2)High efficiency; (3)Class I or class II insulation; (4)3~50 VDC, 12 to 24 watt output; (5)Overvoltage, overcurrent, overload protections; (6)Compliant with CEC efficiency level IV regulations.

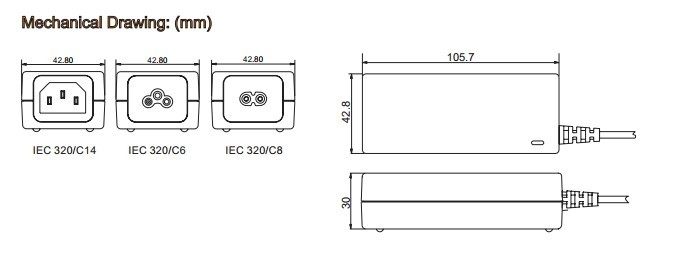

Diagrams
